ImageBaker API Documentation¶

ImageBaker can now be used in three ways: 1. GUI Application - The traditional visual interface 2. CLI Tool - Command-line interface for automation 3. Python Library - Programmatic API for integration

Installation¶

# Install from PyPI
pip install imagebaker

# Or install from source for development
git clone https://github.com/q-viper/image-baker.git
cd image-baker
pip install -e .

Quick Start¶

As a Python Library¶

from imagebaker import ImageBaker, create_annotation, AnnotationType

# Create a baker instance
baker = ImageBaker()

# Add layers
layer1 = baker.add_layer_from_file("background.png")
layer2 = baker.add_layer_from_file("foreground.png")

# Position and style layers
baker.set_layer_position(layer2, x=100, y=100)
baker.set_layer_opacity(layer2, 0.7)
baker.set_layer_scale(layer2, 0.5)
baker.set_layer_rotation(layer2, 45)

# Add annotations
ann = create_annotation(
    label="person",
    annotation_type=AnnotationType.RECTANGLE,
    coordinates=[(50, 50), (150, 150)],
    color=(255, 0, 0)
)
baker.add_annotation(layer2, ann)

# Bake and save
result = baker.bake()
baker.save(result, "output.png", save_annotations=True)

As a CLI Tool¶

# Launch GUI (traditional mode)
imagebaker gui --models-file examples/loaded_models.py

# Simple baking from command line
imagebaker bake simple bg.png fg.png -o output.png \
    --positions "0,0;100,100" \
    --opacities "1.0,0.5" \
    --scales "1.0,0.8"

# Bake from configuration file
imagebaker bake from-config config.py -o output.png

# Get image information
imagebaker info image.png

# Show version
imagebaker version

Python API Reference¶

ImageBaker Class¶

The main class for compositing images.

from imagebaker import ImageBaker

baker = ImageBaker(config=None, output_dir=None)

Constructor Parameters: - config (Optional[CanvasConfig]): Custom configuration - output_dir (Optional[Path]): Directory for outputs (default: ./assets/exports)

Methods¶

add_layer_from_file¶

layer_id = baker.add_layer_from_file(
    image_path: Union[str, Path],
    layer_name: Optional[str] = None,
    visible: bool = True,
    opacity: float = 1.0
) -> int

Add a layer from an image file.

Returns: Layer ID (index)

add_layer_from_array¶

layer_id = baker.add_layer_from_array(
    image: np.ndarray,
    layer_name: Optional[str] = None,
    visible: bool = True,
    opacity: float = 1.0
) -> int

Add a layer from a numpy array.

Returns: Layer ID (index)

set_layer_position¶

baker.set_layer_position(layer_id: int, x: float, y: float)

Set the position of a layer in pixels.

set_layer_rotation¶

baker.set_layer_rotation(layer_id: int, rotation: float)

Set the rotation of a layer in degrees.

set_layer_scale¶

baker.set_layer_scale(layer_id: int, scale_x: float, scale_y: Optional[float] = None)

Set the scale of a layer. If scale_y is None, uniform scaling is applied.

set_layer_opacity¶

baker.set_layer_opacity(layer_id: int, opacity: float)

Set the opacity of a layer (0.0 = transparent, 1.0 = opaque).

set_layer_visibility¶

baker.set_layer_visibility(layer_id: int, visible: bool)

Set whether a layer is visible.

add_annotation¶

baker.add_annotation(layer_id: int, annotation: Annotation)

Add an annotation to a layer.

save_state¶

baker.save_state(step: Optional[int] = None)

Save the current state of all layers. Useful for creating multiple variations.

bake¶

result = baker.bake(
    step: Optional[int] = None,
    include_annotations: bool = True
) -> BakingResult

Composite all layers into a single image.

Returns: BakingResult with the composited image and annotations

save¶

path = baker.save(
    result: BakingResult,
    output_path: Optional[Union[str, Path]] = None,
    save_annotations: bool = True
) -> Path

Save a baking result to disk.

Returns: Path to the saved image

bake_and_save¶

path = baker.bake_and_save(
    output_path: Optional[Union[str, Path]] = None,
    step: Optional[int] = None
) -> Path

Convenience method to bake and save in one call.

Returns: Path to the saved image

get_layer_count¶

count = baker.get_layer_count() -> int

Get the number of layers.

get_layer_info¶

info = baker.get_layer_info(layer_id: int) -> Dict

Get information about a layer.

Returns: Dictionary with layer properties

Annotations¶

create_annotation¶

from imagebaker import create_annotation, AnnotationType

ann = create_annotation(
    label: str,
    annotation_type: AnnotationType,
    coordinates: List[Tuple[float, float]],
    color: Optional[Tuple[int, int, int]] = None,
    annotation_id: Optional[int] = None,
    score: Optional[float] = None,
    caption: str = ""
)

Annotation Types: - AnnotationType.POINT - Point annotations - AnnotationType.RECTANGLE - Bounding box annotations - AnnotationType.POLYGON - Polygon annotations - AnnotationType.MASK - Mask-based annotations

Convenience Functions¶

from imagebaker.api.annotation import (
    rectangle_annotation,
    polygon_annotation,
    point_annotation
)

# Rectangle
ann = rectangle_annotation("person", x1=100, y1=100, x2=200, y2=200)

# Polygon
ann = polygon_annotation("object", [(10, 10), (50, 10), (50, 50), (10, 50)])

# Points
ann = point_annotation("keypoint", [(100, 100), (150, 150)])

Models¶

from imagebaker.api import load_model, load_models

# Load a single model
model = load_model("examples/segmentation.py")
predictions = model.predict(image)

# Load multiple models
models = load_models("examples/loaded_models.py")
detector = models["RTDetrV2"]
segmenter = models["SegmentationModel"]

Layer Class¶

Simplified layer manipulation (alternative to ImageBaker).

from imagebaker import Layer

# Create from file
layer = Layer.from_file("image.png", name="MyLayer")

# Create from numpy array
import numpy as np
image = np.random.randint(0, 255, (100, 100, 3), dtype=np.uint8)
layer = Layer.from_array(image, name="Generated")

# Modify layer
layer.set_position(100, 100)
layer.set_rotation(45)
layer.set_scale(0.5)
layer.set_opacity(0.7)
layer.set_visibility(True)

# Get info
size = layer.get_size()  # (width, height)

CLI Reference¶

All CLI commands are accessed through the imagebaker cli subcommand.

imagebaker (no arguments)¶

Launch the graphical interface (default behavior).

imagebaker

This is equivalent to imagebaker gui.

imagebaker gui¶

Launch the graphical interface with options.

imagebaker gui [OPTIONS]

Options: - --models-file TEXT - Path to Python file with LOADED_MODELS - --project-dir TEXT - Project directory (default: current directory) - --configs-file TEXT - Custom configs file

Examples:

# Launch with default settings
imagebaker
# or
imagebaker gui

# Launch with custom models
imagebaker gui --models-file examples/loaded_models.py

# Launch with custom config
imagebaker gui --configs-file my_config.py --project-dir ./my_project

imagebaker cli¶

Access command-line interface operations.

imagebaker cli [COMMAND] [OPTIONS]

imagebaker cli bake simple¶

Composite multiple images with simple settings.

imagebaker cli bake simple IMAGE [IMAGE...] [OPTIONS]

Options: - -o, --output PATH - Output image path (default: output.png) - -p, --positions TEXT - Positions as "x1,y1;x2,y2;..." - --opacities TEXT - Opacity values as "0.8,0.5,1.0" - --scales TEXT - Scale values as "1.0,0.5,1.2" - --json - Save annotations as JSON

Examples:

# Simple two-layer composition
imagebaker cli bake simple bg.png fg.png -o result.png

# With positioning
imagebaker cli bake simple layer1.png layer2.png layer3.png \
    -o output.png \
    --positions "0,0;100,50;200,100" \
    --opacities "1.0,0.8,0.6" \
    --scales "1.0,0.5,0.8"

# Save with annotations
imagebaker cli bake simple img1.png img2.png -o output.png --json

Output:

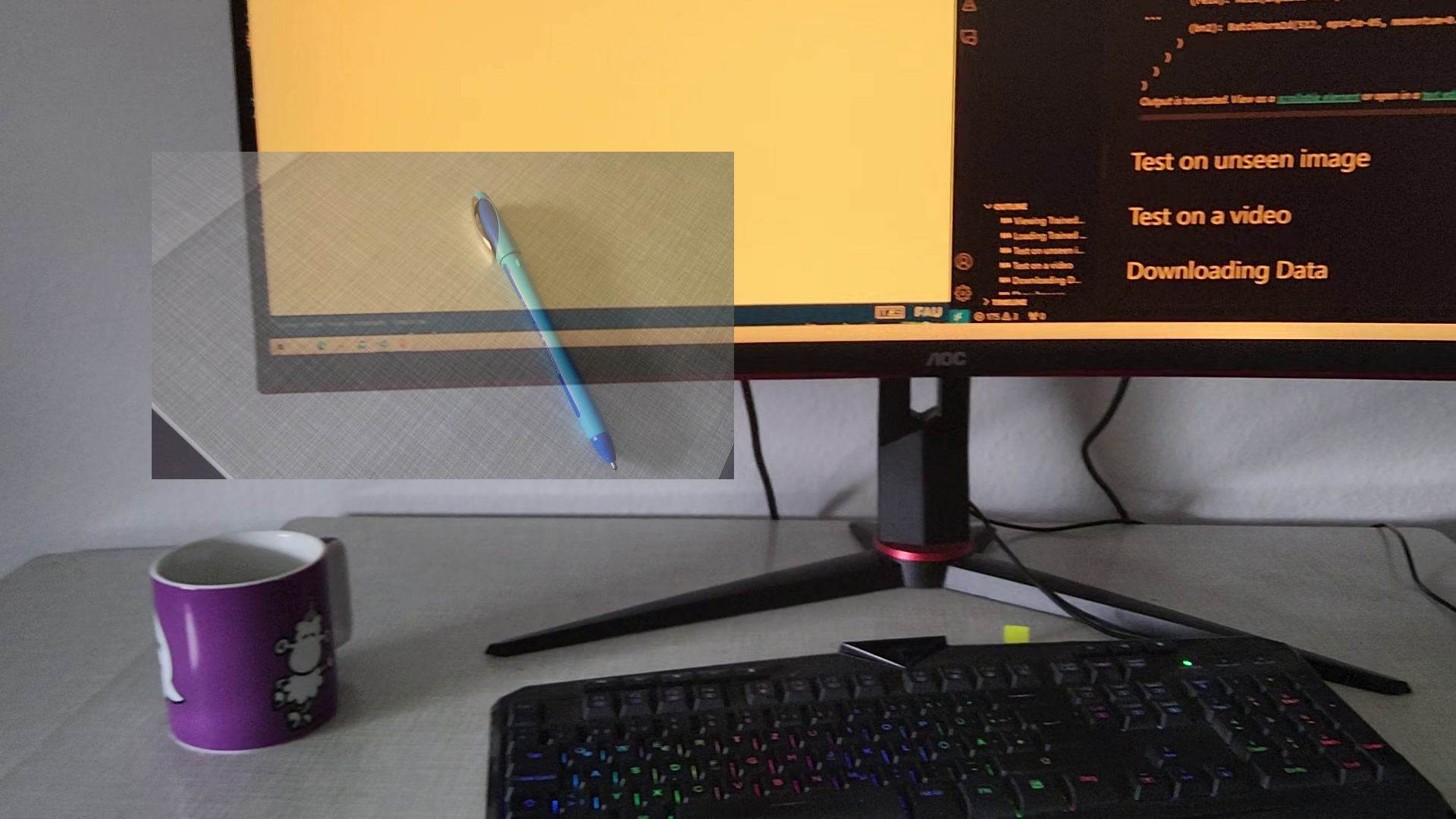

CLI Simple Bake

CLI simple bake: Two images composited with positioning and opacity settings

imagebaker cli bake from-config¶

Bake using a Python configuration file.

imagebaker cli bake from-config CONFIG [OPTIONS]

Options: - -o, --output PATH - Override output path from config

Config File Format:

bake_config = {
    'layers': [
        {
            'file': 'bg.png',
            'position': (0, 0),
            'opacity': 1.0,
            'scale': 1.0,
            'rotation': 0,
            'visible': True
        },
        {
            'file': 'fg.png',
            'position': (100, 100),
            'opacity': 0.5,
            'scale': 0.8,
            'rotation': 15,
            'visible': True
        },
    ],
    'output': 'result.png'
}

Example:

imagebaker cli bake from-config examples/bake_config.py

Output:

CLI Config Bake

CLI from-config: Multi-layer composition with position, rotation, and opacity from Python config file

imagebaker cli info¶

Display information about an image.

imagebaker cli info IMAGE

Example:

imagebaker cli info assets/demo.png

imagebaker cli version¶

Show ImageBaker version.

imagebaker cli version

Examples¶

Example 1: Simple Composition¶

from imagebaker import ImageBaker

baker = ImageBaker()

# Add background
bg = baker.add_layer_from_file("background.jpg")

# Add object with transparency
obj = baker.add_layer_from_file("object.png")
baker.set_layer_position(obj, 100, 100)
baker.set_layer_opacity(obj, 0.8)

# Bake and save
result = baker.bake()
baker.save(result, "composed.png")

Output:

Simple Composition

Two-layer composition: desk background with pen overlay at position (50, 50) scaled to 50%

Example 2: Multiple States (Animation Frames)¶

from imagebaker import ImageBaker

baker = ImageBaker()
bg = baker.add_layer_from_file("bg.png")
sprite = baker.add_layer_from_file("sprite.png")

# Create multiple frames
for i in range(10):
    x = i * 50
    y = i * 30
    rotation = i * 36  # 36 degrees per frame

    baker.set_layer_position(sprite, x, y)
    baker.set_layer_rotation(sprite, rotation)
    baker.save_state(step=i)

# Export all frames
for i in range(10):
    result = baker.bake(step=i)
    baker.save(result, f"frame_{i:03d}.png")

Output Frames:

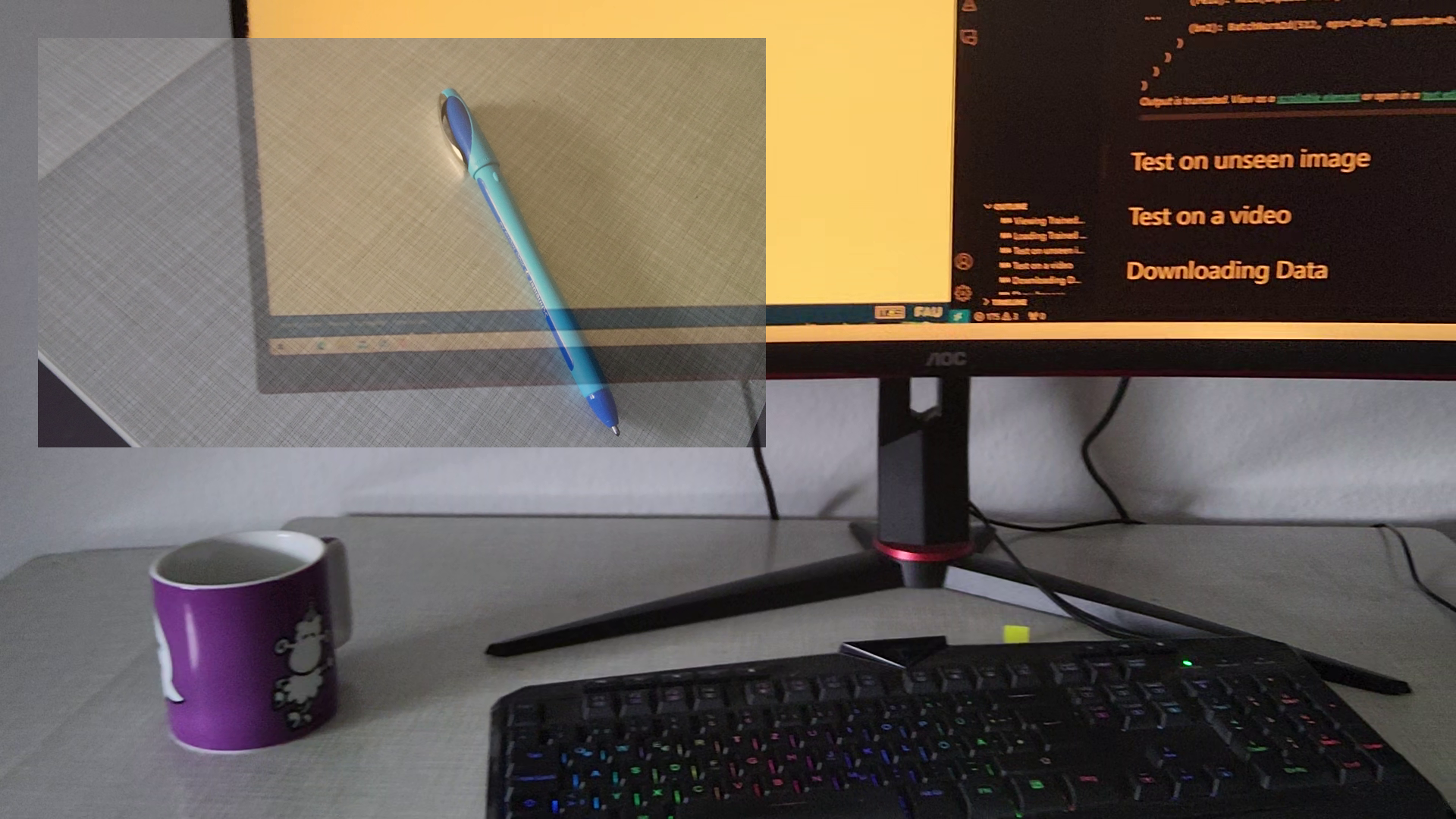

Frame 0: Initial position

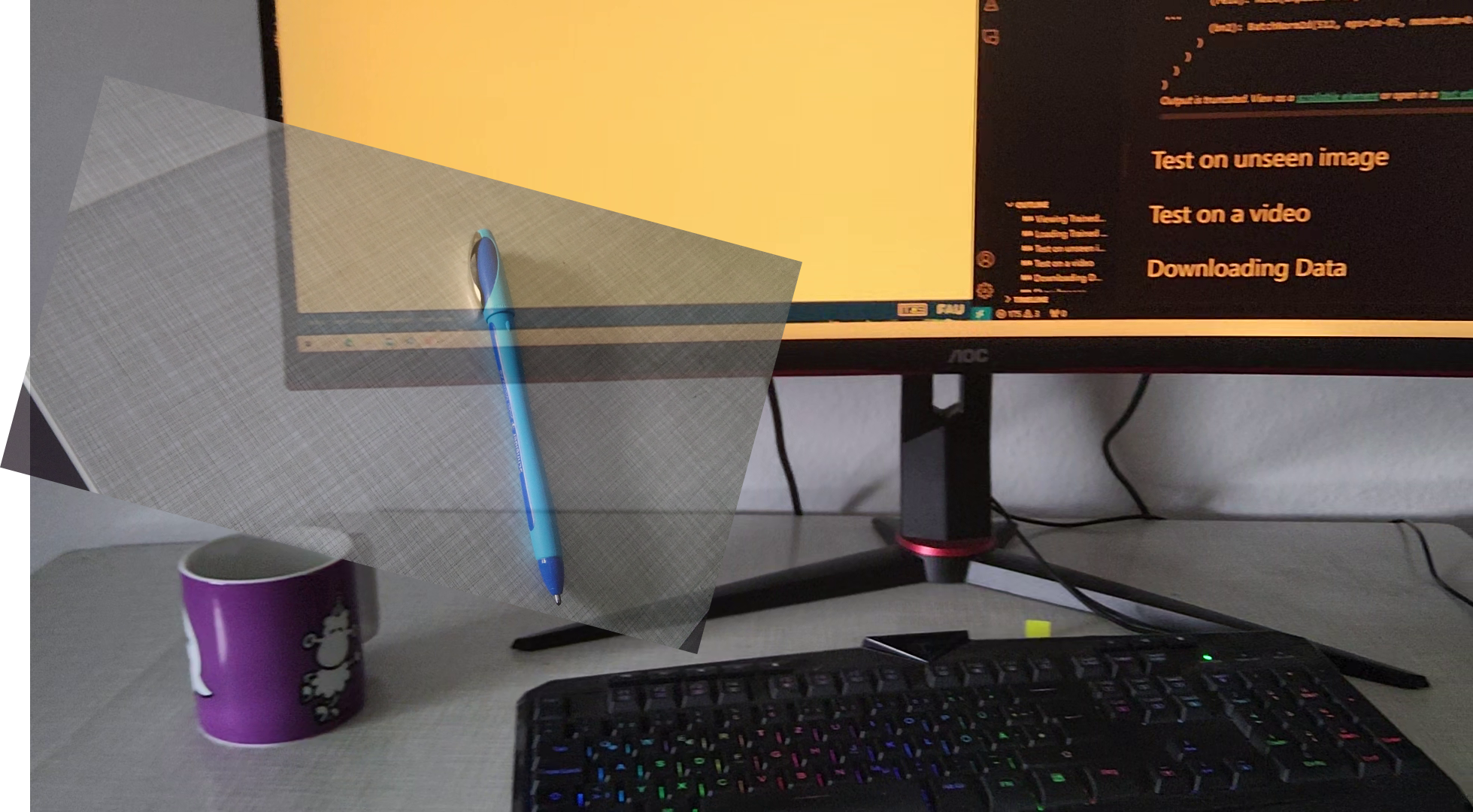

Frame 1: Moved & rotated 15°

Frame 2: Moved & rotated 30°

Animation sequence showing layer position and rotation changes across states

Example 3: With Annotations¶

from imagebaker import ImageBaker, create_annotation, AnnotationType

baker = ImageBaker()
layer = baker.add_layer_from_file("image.jpg")

# Add rectangle annotation
rect = create_annotation(
    label="person",
    annotation_type=AnnotationType.RECTANGLE,
    coordinates=[(100, 100), (300, 400)],
    color=(255, 0, 0),
    score=0.95
)
baker.add_annotation(layer, rect)

# Add polygon annotation
poly = create_annotation(
    label="object",
    annotation_type=AnnotationType.POLYGON,
    coordinates=[(50, 50), (100, 50), (100, 100), (50, 100)],
    color=(0, 255, 0)
)
baker.add_annotation(layer, poly)

# Save with annotations
result = baker.bake()
baker.save(result, "annotated.png", save_annotations=True)

Example 4: Using with ML Models¶

from imagebaker import ImageBaker, load_models
import cv2

# Load models
models = load_models("examples/loaded_models.py")
detector = models["RTDetrV2"]

# Create baker
baker = ImageBaker()
img_layer = baker.add_layer_from_file("scene.jpg")

# Run detection
image = cv2.imread("scene.jpg")
predictions = detector.predict(image)

# Add predictions as annotations
for pred in predictions:
    if pred.rectangle:
        from imagebaker.api.annotation import rectangle_annotation
        x1, y1, x2, y2 = pred.rectangle
        ann = rectangle_annotation(
            label=pred.class_name,
            x1=x1, y1=y1, x2=x2, y2=y2,
            score=pred.score
        )
        baker.add_annotation(img_layer, ann)

# Save annotated result
result = baker.bake()
baker.save(result, "detected.png", save_annotations=True)

Example 5: Batch Processing¶

from imagebaker import ImageBaker
from pathlib import Path

def process_batch(input_dir, output_dir):
    """Process all images in a directory."""
    input_path = Path(input_dir)
    output_path = Path(output_dir)
    output_path.mkdir(exist_ok=True)

    for img_file in input_path.glob("*.png"):
        baker = ImageBaker()
        layer = baker.add_layer_from_file(img_file)

        # Apply some transformation
        baker.set_layer_opacity(layer, 0.8)
        baker.set_layer_scale(layer, 0.9)

        result = baker.bake()
        output_file = output_path / f"processed_{img_file.name}"
        baker.save(result, output_file)
        print(f"Processed: {img_file.name}")

process_batch("input_images", "output_images")

Advanced Usage¶

Custom Configurations¶

from imagebaker import ImageBaker
from imagebaker.core.configs import CanvasConfig

# Create custom config
config = CanvasConfig(
    project_name="MyProject",
    export_format="jpg",
    max_scale=2000,
    write_annotations=True,
    write_labels=True,
    write_masks=True
)

baker = ImageBaker(config=config)

Working with Numpy Arrays¶

from imagebaker import ImageBaker
import numpy as np

baker = ImageBaker()

# Generate image programmatically
width, height = 640, 480
image = np.random.randint(0, 255, (height, width, 3), dtype=np.uint8)

# Add as layer
layer = baker.add_layer_from_array(image, "generated")

# Convert result back to numpy
result = baker.bake()
numpy_image = baker.to_numpy(result)

Integration with OpenCV¶

from imagebaker import ImageBaker
import cv2

# Read with OpenCV
image = cv2.imread("image.jpg")
image_rgb = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

# Use in ImageBaker
baker = ImageBaker()
layer = baker.add_layer_from_array(image_rgb)

# Process
result = baker.bake()
output = baker.to_numpy(result)

# Save with OpenCV
output_bgr = cv2.cvtColor(output[:, :, :3], cv2.COLOR_RGB2BGR)
cv2.imwrite("output.jpg", output_bgr)

Migration Guide¶

From GUI-only to API¶

If you're used to the GUI, here's how operations map to the API:

GUI Operation	API Equivalent
Load Image	`baker.add_layer_from_file()`
Move Layer	`baker.set_layer_position()`
Rotate Layer	`baker.set_layer_rotation()`
Scale Layer	`baker.set_layer_scale()`
Change Opacity	`baker.set_layer_opacity()`
Hide Layer	`baker.set_layer_visibility(id, False)`
Save State	`baker.save_state()`
Bake	`baker.bake()`
Export	`baker.save()`

Troubleshooting¶

Import Errors¶

If you get import errors, make sure ImageBaker is properly installed:

pip install -e .  # Development mode
# or
pip install imagebaker  # From PyPI

Qt/GUI Issues¶

The API doesn't require a display, but PySide6 is still needed. If running headless:

export QT_QPA_PLATFORM=offscreen  # Linux
set QT_QPA_PLATFORM=offscreen     # Windows

Performance Tips¶

Reuse ImageBaker instances for batch processing
Use save_state() only when needed
For large images, consider downscaling
Use numpy arrays for programmatic generation

Contributing¶

Contributions are welcome! See CONTRIBUTING for guidelines.

License¶

MIT License - see LICENSE for details.
